Products Home > Products > Caster > Light-Medium Duty Casters > Detail

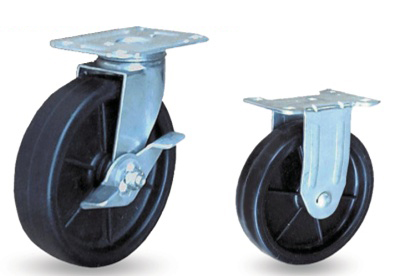

Light medium duty casters



Wheel
Dia
In./mm
Wheel
Width
W(mm)
Load
Cap
(kg)

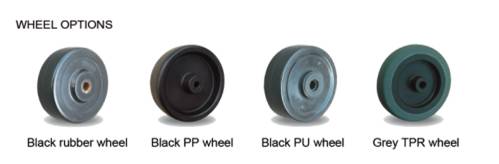

Wheel Material
Description
Tread /Hub
Wheel
Bearing
Type
Swivel
Radius
E(mm)
Overall
Height
H(mm)
Top plate Caster Model NO.
Rigid Casters Swivel Casters
3/76 32 60 Black rubber wheel Plain 31 101 300PF-076031P-02 300PS-076031P-02
32 70 Black PP wheel Plain 31 101 300PF-076031P-05 300PS-076031P-05
4/100 32 70 Black rubber wheel Plain 34 122 300PF-100031P-02 300PS-100031P-02
32 70 Black PP wheel Plain 31 122 300PF-100031P-05 300PS-100031P-05
5/125 32 80 Black rubber wheel Plain 31 148 300PF-125031P-02 300PS-125031P-02
32 70 Black PP wheel Plain 31 148 300PF-125031P-05 300PS-125031P-05
